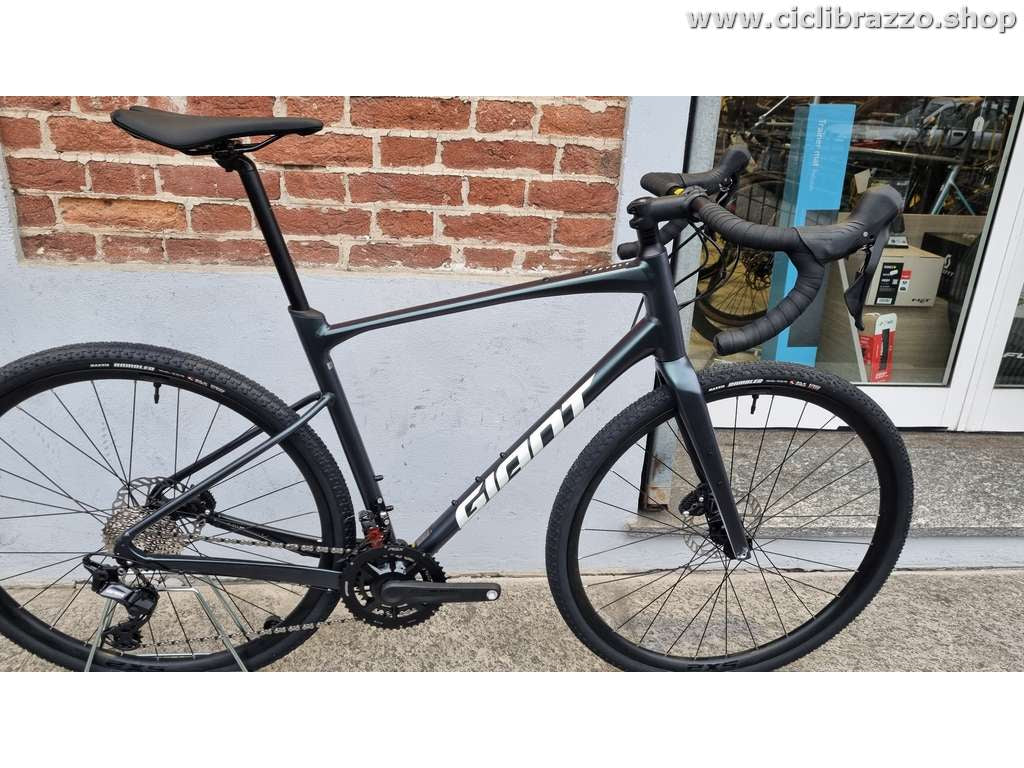

GIANT REVOLT 0 - 2024

RIDE ROAD, GRAVEL, OR DIRT WITH THIS VERSATILE ALUMINUM ALL-ROUNDER. A COMPOSITE FORK DELIVERS A SMOOTH RIDE, AND THE FLIP CHIP ALLOWS YOU TO ADJUST WHEELBASE AND TIRE CLEARANCE.

Fast and light

The frame is designed with strength positioning and shorter chainstays for precise handling, agility, and control. A longer reach, shorter stem, and lower bottom bracket travel improve stability on rough terrain.

Enhanced compliance

Low-slung seatstays with thin tubes absorb road shock and vibration. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness during cornering, sprinting, or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase to short for quicker handling and acceleration, or long for better stability at speed. The long setting allows for larger tire diameters up to 53mm. You can choose the included D-Fuse seatpost for maximum

• Sizes XS, S, M, M/L, L, XL
• Colors: Blue Dragonfly, Pyrite Brown
• ALUXX-grade aluminum frame , 12x142mm thru-axle, disc, flip chip dropout
• Advanced-grade composite fork , full-composite OverDrive steerer, 12mm thru-axle, disc
• Giant Contact XR D-Fuse Handlebar , 31.8mm
• Cork tape with gel
• Giant Contact Stem , 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Giant D-Fuse seatpost , alloy, 14mm offset
• Giant Approach Saddle
• Shimano GRX RX-610 rear derailleur , 2x12
• Shimano GRX RX-820 Front Derailleur
• Shimano GRX RX-410 hydraulic brakes , Giant MPH rotors [F]160mm, [R]160mm

• Shimano GRX RX-610 hydraulic brake controls
• Shimano 105 sprocket set , 11x34
• KMC X12L-1 chain
• FSA Omega Modular AGX+ Crankset , 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• FSA Mega EXO bottom bracket
• Rims Giant S-X2 Disc wheelset, alloy
• Giant alloy hubs , 12mm thru-axle
• Stainless steel spokes
• Maxxis Rambler/Ravager tires , 700x40c, tubeless
• Extra tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
